Windows Services

Microsoft Windows Resource Kit Utilities

Historical Reference

Important Note:
This page is for historical reference only. For information on adding and installing Windows services, see Install Windows Services.

PxPlus can be installed as a Windows Service, which is a special process designed to start and run automatically under Windows directly from start-up; e.g. a networking or remote access procedure. The three primary methods for setting up service entry points to PxPlus (pxplus.exe) are outlined below.

The Windows Resource Kit includes two utilities for creating a service: instsrv.exe, which installs/removes system services from Windows, and srvany.exe, which allows an application to run as a service. The following steps describe how to use these utilities:

1.

Install instsrv.exe and srvany.exe in a directory; e.g. create d:\tools\ and copy the files to this location.

2.

Create the service using the command line:

     instsrv ServiceName path\srvany.exe

Where:

     ServiceName is the name that will appear in the Services control panel.
     path is the full path to the srvany.exe executable.

Example:

     D:\tools\instsrv MyApp d:\tools\srvany.exe

3.

From your desktop, select Start > Parameters > Control Panel > Services. Select the service name created in Step 2, and then select the Start-Up button.

4.

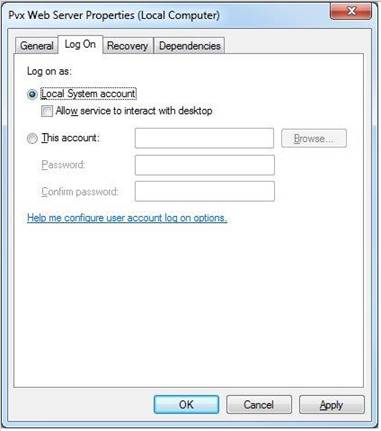

Set up the service as Auto-Start, and select a user account and password, or a LocalSystem account.

If a user account is selected, then the *NTHOST program and any spawn tasks will be hidden from the desktop.

If the LocalSystem account is selected, then Allow Service to Interact with Desktop can be enabled. With this option enabled, the *NTHOST program and any spawned tasks will be visible on the desktop.

Note:
LocalSystem account does not have network access by default.



Important Note:
The remaining steps involve editing the registry. Before you change the registry, make sure you understand how to restore it if a problem occurs. For information on how to do this, view the Restoring the Registry Help topic in Regedit.exe or the Restoring a Registry Key Help topic in Regedt32.exe.



5.

From your desktop, select Start > Run > regedt32.

Under HKEY_LOCAL_MACHINE\SYSTEM\Current\ControlSet\Services\ServiceName, create a key named 'Parameters'. Under this key, create the following values:

Name:

Application

Type:

REG_SZ

String:

PxPlus_Installation_Path\Pxplus.exe

Name:

AppParameters

Type:

REG_SZ

String:

*NTHOST parameters

Name:

AppDirectory

Type:

REG_SZ

String:

PxPlus_Installation_Path\lib

Due to a restriction enforced by Windows NT on services, an application can either be interactive (have a console, read keyboard input, etc.) or have network access - not both at the same time.

6.

To allow LocalSystem services on any machine in the domain to access a specific share on a server, use the Registry Editor to add the name of that share to:
     HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\LanmanServer\Parameters\NullSessionShare

To allow access to named pipes, add an entry to:
     HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\LanmanServer\Parameters\NullSessionPipes

To allow all shares and pipes on the server to be accessed by LocalSystem services, add a value:
     HKEY_LOCAL_MACHINE\System\CurrentControlSet\Services\LanmanServer\Parameters\RestrictNullSessAccess

Type:  REG_DWORD
     Value: 0

The above entry effectively allows everyone in the domain to access that server.

7.

Quit regedt32.exe and reboot the server.

The service should start automatically and begin to listen on the socket specified in the AppParameters key, or 10000 if no socket was specified.



Note:
The parameters associated with NTHOST should be tested using a shortcut to ensure they are correct prior to creating the service.

PxPlus Command Line Options

PxPlus supports command line options for installation as a true Windows Service. Currently, only Start and Stop functions are supported - Pause and Continue functions may be added in a future release.

Install Service

path\pvx\pxplus.exe -i [pxplus.ini] ServiceName ServiceDisplayName StartType StartInDirectory CommandLine [ ServiceDescription ][ Account ][ Password ]

Where:

ServiceName

Name that will appear in the Services control panel.

ServiceDisplayName

Name that appears in the Services control panel.

StartType

Service start-up option, value between 1 and 3:

1 - Auto start service
2 - Manually start service
3 - Service is disabled

StartInDirectory

Directory used as the start-up directory for the service.

CommandLine

Command-line arguments with which to start PxPlus.

ServiceDescription

Description that appears in the Services control panel.

Account

Domain and account to run the service as. If the account is set to "interactive" (case insensitive), then the service will be setup to use the LocalSystem account and interact with the desktop.

Password

Password for the above account.

Start Service

path\pvx\pxplus.exe -s [pxplus.ini] ServiceName

Where:

ServiceName is the name that will appear in the Services control panel.

Uninstall Service

path\pvx\pxplus.exe -u [pxplus.ini] ServiceName

Where:

ServiceName is the name that will appear in the Services control panel.

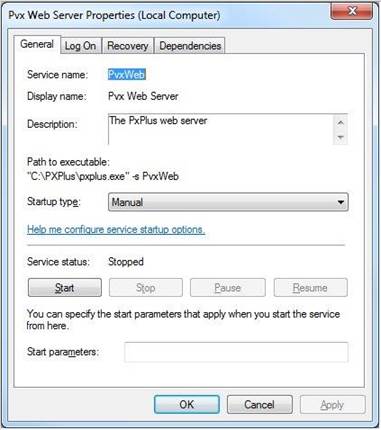

The -s option will not start the service unless it is executed by the Service Manager. It will appear as the command line argument in the Service Properties panel. If the pxplus.ini file used by the executable contains a LogFile= entry, then any errors that occur during the install, uninstall, or start of the service will be logged.

If a Windows function fails, then the last error code will be logged. These can be found in MSDN under "System Error Codes" (index entry "error codes [Win32]"). Any parameter containing spaces requires a delimiter character of either " (quote) or ' (apostrophe). Leading/trailing apostrophes are always stripped. Leading/trailing quotes are stripped from StartType, ServiceDisplayName, ServiceDescription, Account and Password.

TCB(170) returns the service handle. The value will be zero if the program is not running as a service. This only applies to a PxPlus executable installed and started using the -i and -s options above.

Example:

>pxplus.exe -i "PvxWeb" "PxPlus WebConfig" 1 "C:\PVX Plus Technologies\PxPlus version_number" "*web\webcfg" "My PxPlus Web Configuration Screen" "interactive"
>pxplus.exe -u "PvxWeb"



PxPlus Object *obj\ntservice

The PxPlus object *obj\ntservice can be used to manipulate Windows Services. The following methods are currently available:



CreatePxPlusService( )

DeletePxPlusService( )

StartService( )



StopService( )

ServiceState( )

OpenService( )



CloseService( )





Example:

00010 let a=new("*obj/ntservice")
00020 let servicename$="pvxapp"
00030 let displayname$="PxPlus appcfg"
00040 let description$="PxPlus application server config"
00050 let commandline$="-bkg *appserv\config"
00060 let startindirectory$="C:\PVX Plus Technologies\PxPlus version_number"
00070 let starttype=1
00080 let useraccount$=""
00090 let userpassword$=""
00100 let interactwithdesktop=1
00110 print a'createpxplusservice(servicename$,displayname$, description$,commandline$,startindirectory$,starttype,useraccount$,userpassword$,interactwithdesktop)
00120 let sh=a'openservice(servicename$)
00130 print a'servicestate(sh)
00140 print a'startservice(sh)
00150 print a'servicestate(sh)
00155 escape
00160 print a'stopservice(sh)
00170 print a'deletepxplusservice(servicename$)
00180 end
