Table Definitions

Example 1 - The following example consists of all the possible field types:

STRINGDLM$="ABCD" STRFIX$="EFGH" STRPAD$="IJKL" STRSUB$="MNOP" STRLAST$="QRST" NUMDLM=1.2
NUMFIX=3.4
NUMPAD=5.6
NUMSUB=7.8
NUMLAS=9.1
NUMBIN=2.3
NUMDEC=4.5
NUMDECDLM=6.7
NUMSGN=8.9
NUMUNS=12
LASSTR$="UVWX"

Example 2 - The following example shows the record as it would appear in the physical file. Values delimited by curly braces, "{ }", are hexadecimal values. Line breaks and spaces are for readability only:

ABCD {8a} EFGHIJKLMNOPQRST {8a} 1.2 {8a} 00340005600780091 {8a} {00000017} 4.5 6.7 {8a} 089+ {0000000C} UVWX {8a}

The INI file definition appears as follows:

[*Tables*]
ODBC = odbcflds.dat

[ODBC]
stringdlm = STRING, FIELD=1, OFFSET=0, LEN=4, VARIABLE
strfix = STRING, FIELD=2, OFFSET=0, LEN=4, FIXED
strpad = STRING, FIELD=2, OFFSET=4, LEN=4, NOSTRIP
strsub = STRING, FIELD=2, OFFSET=8, LEN=4, SUBSTRING
strlast = STRING, FIELD=2, OFFSET=12, LEN=4, PADDED
numdlm = NUMERIC, FIELD=3, OFFSET=0, LEN=4.1, VARIABLE
numfix = NUMERIC, FIELD=4, OFFSET=0, LEN=4.1, FIXED
numpad = NUMERIC, FIELD=4, OFFSET=4, LEN=4.1, FIXED
numsub = NUMERIC, FIELD=4, OFFSET=8, LEN=4.1, FIXED
numlas = NUMERIC, FIELD=4, OFFSET=12, LEN=4.1, PADDED
numbin = NUMERIC, FIELD=5, OFFSET=0, LEN=4.1, BINARY
numdec = NUMERIC, FIELD=5, OFFSET=4, LEN=4.1, DECIMAL
numdecdlm = NUMERIC, FIELD=5, OFFSET=8, LEN=4.1, DELIMITED
numsgn = NUMERIC, FIELD=6, OFFSET=0, LEN=4.1, SIGNED
numuns = NUMERIC, FIELD=6, OFFSET=4, LEN=4, UNSIGNEDBINARY
lasstr = STRING, FIELD=6, OFFSET=8, LEN=4, PADDED

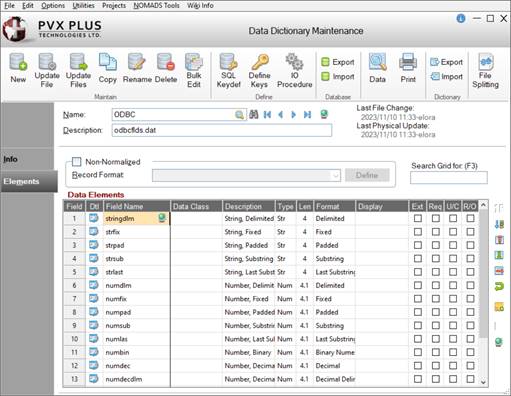

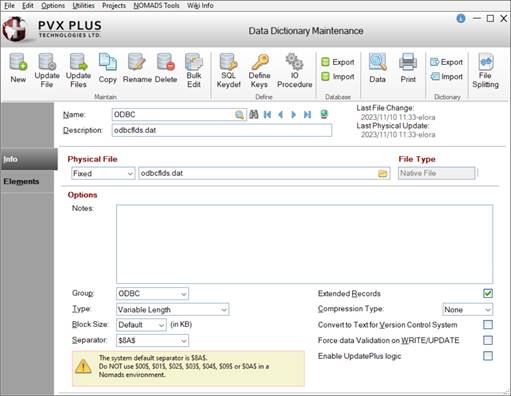

The Data Dictionary definition appears as follows:
