Server Configuration |
The Application Server includes a utility for creating and setting up server characteristics, including security and administration. The Windows interface for the configuration utility is a NOMADS application that can be run locally via PxPlus for Windows or by using WindX connected to a UNIX/Linux server. A character-based method for running this utility is also available.
This utility may be launched from a shortcut supplied with the PxPlus for Windows installation. Otherwise, the Command line syntax is described as follows:
|
|
In Windows: |
PVXpath$ [-hd] [apscfg.ini] *appserv\config [–ARG arguments] |
|
|
In UNIX/Linux: |
PVXpath$ "*appserv"/config |
Where:
|
PVXpath |
Path to PxPlus. | ||||||
|
-hd |
Command line option indicating that the utility starts with the initial window hidden. (Windows Only) | ||||||
|
apscfg.ini |
Configuration's standard INI file. (Windows Only) | ||||||
|
arguments |
Optional configuration flags. (Windows Only)
|
Application servers are created and maintained from the main panel of this utility. This panel is divided into several tabbed panels for viewing and/or changing different configuration and administration options: Sessions, Server, Clients, Apps, Users, Service and Logging.
The main panel is where new servers are named and created, and it is where the system administrator controls which server is currently selected to be started, stopped or updated. Changed settings are saved in different files under the Lib/_appserv directory.
See Server Configuration Files below.
Creating a New Server
Using this utility, a new Application Server is created by entering a name in the Server field. All information about the new server will then be stored under this name, and it can be recalled later (by server name) for further editing. Once the server is saved, this name can also be used to start the server from the Command line via the server daemon program (*appserv\server).
Server names are case insensitive and may comprise any legal characters up to 20 characters in length. However, you cannot use characters less than Hex $20$, spaces or any of the following: " < > , / \ * ? & | ; : { } ( ) $ ! `
Modifying or Deleting Server Properties
If the configuration of any current server has been changed, you will be asked to save those changes before proceeding to configure the next server.
To delete a server, select its name from the Server drop list and then click the Delete button. All server names can be deleted unless they are currently running.
Any changes made to fields in the Server, Clients, Apps, Users or Logging panels are considered changes to the currently selected server. To save these changes, click the Apply button or switch to a different server name.
Updating On-the-Fly
If you save changes to a server while it is running, the new configuration will be applied automatically. Changes made under <Global Config> will apply to all servers that are currently running. The update will take place unless you opted to change TCP/IP properties, which results in a conditional update procedure. Because Application Servers play "man-in-the-middle", closing the TCP/IP socket will disconnect all connected users. If the server's TCP/IP properties have been changed and the TCP/IP socket needs to be closed and reopened, then the server will perform the following:
Switching Between Servers
Switch to another configured server by selecting a different server name from the Server drop list or by entering the name directly into the field. You can also switch from a specific server to define <Global Config>. If you change any characteristics of the currently selected server, you will be asked to save your changes before proceeding.
Starting a Server
From the Command line, use the *appserv/server daemon program.
From the Configuration utility, click the Start button that appears under the Server panel while the specific server name is currently selected.
Stopping a Server
From the Configuration utility, click the Stop button that appears under the Server panel while the specific server name is currently selected.
From a Windows operating system, select Close from the right mouse menu when clicking on the server's taskbar button.
Under UNIX/Linux, use:
Kill -2 pid
Where:
pid is the server's process ID.
Server Status
Adjacent to the Server field is the server Status indicator, which reports if the currently selected server is Running or Stopped, Starting or Stopping, and reports when an update is in progress.
The status is only updated when:
The Sessions panel lists (and allows the termination of) currently running sessions. The drop box under the Sessions panel lists View Options for viewing sessions. The list is purged each time the server is started.
The columns listed are customizable. Right click any column header to select which columns are listed. Drag on the headers to change the order of the columns.
|
User |
Remote user name that the user signed onto the Application Server with to start his/her session. | ||||||
|
Client |
Type of client software that the client workstation is using to access the server (e.g. WindX). | ||||||
|
Type |
Specific type of session that the user is running, either Client or Spawn. | ||||||
|
Status |
State of the session, either Connected or Terminated. | ||||||
|
Application |
Name of the application that the user requested to be run, or the lead program if the application was not configured. | ||||||
|
Connect Time |
Either the amount of time (in days, hours, minutes, seconds) that an active session has been running, or the amount of time a terminated session had been running prior to termination. | ||||||
|
Refresh |
Button used to update the Sessions list. The list will also be refreshed whenever the user switches back from another tab. | ||||||
|
Details |
Button used to display the Session Details panel with details on the currently selected session. | ||||||
|
Terminate |
Button used to drop a session. This disconnects the user and terminates the session on the server, no matter what that session is doing. Warning! | ||||||
|
Interrupt |
Button used to interrupt a session and drop the user into console mode on the client side (for troubleshooting purposes). | ||||||
|
Lists options for viewing sessions:
|
The Session Details panel is invoked by clicking the Details button for a selected session. It provides further information about the session. Scroll down the list for complete details of the session, organized as follows:
The Server panel is used to configure the primary server attributes. You can start, stop, modify, create or delete the currently selected server. See Main Panel above.
|
TCP/IP |
These fields are used to define TCP/IP settings. |
|
Socket |
TCP/IP port number (socket) that the server will open and on which it will listen for requests. This socket will be used for all aspects of the server, from the initial connections through handling of session traffic. Select any valid TCP/IP port from 1 to 65535. Sockets 1 to 1024 are usually governed by the operating system, and only processes running as root or users classed as Administrators will be allowed to open sockets in this range. |
|
KeepAlives |
Check box for using TCP/IP KeepAlives on the socket. If this option is selected, the operating system will send KeepAlive packets to the server- and client-side processes to check if they are still connected. The amount of time before sending KeepAlives, the number of KeepAlives sent, and the interval between sending them are configured at the operating system level. |
|
Encrypt |
Check box for using SSL encryption on the socket. If this option is selected, the Application Server will only accept connections from clients who use SSL encryption. All traffic between the server and the client processes will be SSL encrypted. If On, a valid SSL certificate file must be entered (see Certificate below). |
|
Certificate |
SSL certificate file to be used for SSL-encrypted communications. This field is active only if SSL encryption is turned On. The file must be in the standard format that PxPlus SSL requires, which is a plain text file containing both the X509 certificate and the private key. |
|
These fields are for configuring default user characteristics for running server-side processes and are only applicable when running in a UNIX/Linux environment or in MS Windows (in conjunction with CmdAsUser). | |
|
Run All as Default User |
When this check box is selected, all client session requests will have their server-side process run as the user given in User Name. Any user name listed in Current Users Properties will be ignored. This causes all PxPlus processes on the server to be run using the default user ID. Under Windows, all server-side processes will be run as the currently logged-on user or whatever user name is set when running this software as a service. In a UNIX/Linux environment, the Application Server will use DEF UID to launch new sessions if DEF UID is supported by the operating system. Otherwise, the "su" command will be used. There is no provision in the "su" command to pass the user's password as an argument; therefore, the only way you can run the Application Server and have it launch processes as other users is if the Application Server daemons are running as "root"; i.e. it does not require a password to run processes as other users. |
|
User Name |
This provides the user name that the server-side PxPlus sessions will be run as. (This has no effect when running Windows or when not using CmdAsUser in a Windows environment.) Where the client is not forced to log on, any session request that is not preceded by a logon is classified as an anonymous user. The default user name is used to run any server-side PxPlus session for any connecting anonymous user. |
|
User Password |
Windows option for setting the password for the user ID given in the User Name. It is only used by the CmdAsUser utility and is not required under UNIX/Linux. |
|
User Domain |
Windows option for specifying the domain name for the user ID given in the User Name. It is only used by the CmdAsUser utility and is not required under UNIX/Linux. This is used only when Run All as Default User is set or when sessions connect anonymously. |
|
State |
These fields allow an administrator to control the current state of the Application Server being configured. |
|
Disable Server |
Check box to determine whether this server can be started (if currently not running). If disabled, the server will terminate before it starts accepting connections. |
|
Disable New Connections |
Check box for disabling new sessions (for maintenance purposes). If set, then a Reason should be specified to present to users attempting to connect. Only new sessions that are started from the client's PC will be disabled — it does not affect currently connected users. Current users will still be able to spawn additional sessions, but new connections via *CLIENT will be refused. This setting does not affect the configuration system's ability to talk to the server daemons. |
|
Disable All Connections |
Check box to prevent all new sessions from being started. This includes new Client sessions (from *CLIENT), as well as any newly spawned sessions from currently connected users. This will not affect currently connected users, but it will prevent current users or potential users from starting new sessions of any kind. This setting does not affect the configuration system's ability to talk to the server daemons. |
|
Reason |
Descriptive reason for disabling the server. If either the Disable New Connections or Disable All Connections check box is set, then the user will receive an error message informing him/her that the server is disabled for the reason provided. |
|
| |
|
Show Sessions in Taskbar |
Windows option that determines whether the client sessions that get launched show up as a button on the Window's task bar. |
|
Use CmdAsUser |
Windows option that determines whether the Application Server is to use the CmdAsUser utility to launch sessions on the server as specific users. Note: |
|
Detach Spawns via Nohup |
UNIX/Linux option to indicate that any spawns from within this session will use Nohup. The use of Nohup determines if a process is to remain attached (or not) to the process that spawned it. If it is attached, then the child process will terminate when the session the parent is running has terminated. This is the default setting for programs that are run, but not configured, as applications. Applications that are configured will use their own setting. |
|
Default Umask |
UNIX/Linux option for setting the umask to use when running programs that are not configured as applications. Applications that are configured will use their own setting. |
|
If the following fields are not specified, then the INI file and Start-In directory of the server daemon itself will be used instead by default: | |
|
Server's INI |
Windows option for providing the name of the INI file to use for the *appserv/server daemon. It is only required if you use the Start button to start the server daemons from within the configuration utility. |
|
Start-In Directory |
Directory where the *appserver/server daemon is to be started in. It is only required if you use the Start button to start the server daemons from within the configuration utility. |
The Clients panel is used to configure some general properties of the server as they relate to the clients that will be connecting.
|
Clients |
These fields allow an administrator to control the current state of the Application Server being configured. | ||||||||
|
Client Must Login |
Check box to prevent anonymous sessions. If selected, the server must receive a valid login request before it receives a session request. In this case, the user on the client side must log in with a valid user name and password as configured in the Users panel. Only valid clients are allowed to request that sessions be run. Currently connected clients whose software does a spawn within the server-side process do not need to log in again. Sessions "spawned" from within a current session pick up the current user's characteristics. If not selected, then anonymous sessions are accepted pending other validation. The *CLIENT program tries to establish an anonymous session when it first connects. Using the -LOGIN option on the *CLIENT program, it is possible to have both anonymous and logged-on clients. This argument tells the *CLIENT program to skip the anonymous session attempt, process the Login panel, and log in the user. Using this method, it is possible to have both types of users (where validated users have more privileges than anonymous ones). Note: | ||||||||
|
Allow Anonymous Console Access |
Check box to allow users that have not given a valid logon to access the PxPlus console mode. Important Note: | ||||||||
|
Re-Connect |
Options for controlling the ability of client sessions to reconnect to the server if their network connection fails or is interrupted:
| ||||||||
|
Max Total Clients |
Maximum number of unique clients who may be connected to the server at one time. If set to 0, then there is no limit. This does not affect the number of active connections or the number of spawned sessions any one client may have. The number of unique clients is dependent on the Client Must Login option. If the Client Must Login option is selected, then the number of unique clients is the number of different user names that may log in. Otherwise, the number of unique clients is determined by the number of different client IP Addresses that the server sees. | ||||||||
|
Max Total Sessions |
Maximum number of sessions that this server will allow at any one time. If set to 0, then there is no limit. The total is determined as a count of both client- and spawn-connected sessions. | ||||||||
|
Timeout (Seconds) |
These fields represent the timeout values (in seconds) for completing certain session-related operations. | ||||||||
|
New Connections |
Time limit (in seconds) that a connecting client has to make its first valid request. Any connection that does not make a request in this time will be disconnected. This keeps other TCP/IP-based software (port scanners or hackers) from tying up server resources. | ||||||||
|
User Requests |
Time limit (in seconds) that a connected client has to make any additional requests after their first valid request. Setting this value keeps the server from holding open or using up resources when a client may have disconnected without notifying the server while in the process of making requests. | ||||||||
|
Admin Requests |
Time limit (in seconds) for internal administration requests between the Configuration system and running server daemons. | ||||||||
|
Re-Connect Timeout |
Time limit (in seconds) that a connecting client has to perform a reconnect from the moment the Application Server daemon realizes that the connection has been severed. Server-side processes will be kept running for this length of time before terminating. Once terminated, the client will not be able to reconnect to that session. |
Clients will only be able to reconnect to their sessions within the same instance of the client. If the client exits and its process terminates, then it will not have the information required to reconnect – therefore, a reconnect would not be possible.
The client may not notice that its connection to the server has been severed. The client will only notice this happening if the user is currently performing some task within the client. That is, the client may sit idle for an extended period of time and not notice that the connection had been severed when a user begins to type or click the mouse - the server daemons reconnect timeout may have already expired, and the user will not be able reconnect.
Setting a long duration for a reconnect timeout may leave processes running on the server for that entire time, consuming server resources until their timeout expires.

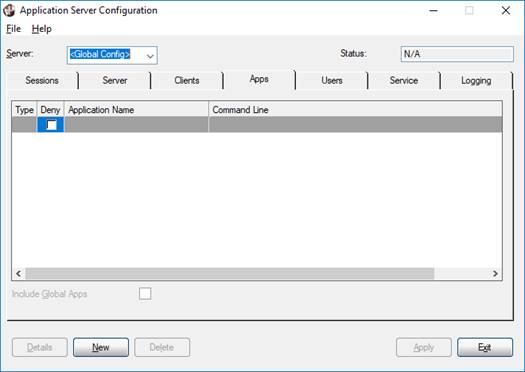

The Apps panel defines the applications that may be run by the currently selected server. Application entries may be created, changed or deleted using this panel.
|
Type |
Indicates whether an application is L (configured locally within this server) or G (configured within the <Global Config>). |
|
Deny |
Check box (On/Off) method for denying access to a listed application. |
|
Application Name |
Case insensitive application name. This is the name used in *CLIENT to identify and run the application. |
|
Command Line |
Representation of PxPlus Command line syntax for the defined application. This syntax is not used by the Application Server, as it requires other properties and programs, but is simply a way to describe properties used by the application when it is launched. |
|
Include Global Apps |
Check box to determine whether the current server should use the globally configured applications (from the <Global Config>), in addition to any locally configured applications. |
|
Details |
Button used to view or modify properties of a listed application. Highlight an application entry and click this button to invoke the Application Properties panel to allow an administrator to configure application properties. |
|
New |
Button used to create a new application. Click this button to invoke the Application Properties panel to allow an administrator to configure application properties. To define an application that is available to all configured servers, switch the Server field to <Global Config>. |
|
Delete |
Button used to delete a selected application entry. |
The Application Properties panel is invoked by clicking the Details or New button. It allows an administrator to configure application properties.
|
Application |
These fields provide the name for and the properties of a given application. |
|
App Name |
Descriptive name to identify a set of application properties. These are the properties it takes to run an application. Each application is created, referenced and stored by using a descriptive name. This name is also used in *CLIENT to request the specific application. Application names are case-insensitive. The name entered may contain any legal characters up to 40 characters in length. However, you cannot use a character less than Hex $20$ or any of the following: " < > , / \ * ? & | ; : { } ( ) $ ! ` |
|
PxPlus EXE |
Location on the server of the PxPlus executable to run this application. A null or <Default> setting indicates using the same executable that the Application Server daemon itself is using. |
|
Server INI |
Windows option for naming the INI file to use for the server-side PxPlus process. A null or <Default> setting indicates using the same INI that the Application Server daemon itself is using. |
|
Lead Program |
Actual name of the PxPlus program to be run, known in PxPlus as the lead program. If null or CONSOLE, then this is classified as a console session and is subject to console restrictions. |
|
Extra CMD Options |
Options that are to go between the lead program name and any statement on the Command line. It is intended for system parameter settings (e.g. -XT=1 or -XT=0 -NE=1). Extra command line options are supplied to the server-side process after the lead program name, but before any -ARG values. Example: ServSideCMD "LeadProgram" XtraCMDoptions$ -ARG ... The client can send additional command line arguments. Any such additional arguments will be added to the end of this argument string. |
|
Arguments |
Command line arguments for the server-side process. These arguments will be available to the launching process via the ARG( ) function and NAR system variable. These are supplied to the server-side process as –ARG values. Example: ServSideCMD "LeadProgram" -ARG arguments$ |
|
Start-In Directory |
Server directory where the Application Server is to launch the process for running the specified lead program. This will become the home working directory (HWD) of the process. |
|
Init Window |
Initial window. Available selections are Normal, Minimized, Maximized, Hidden. |
|
Options |
These fields provide On/Off functionality for Application properties. |
|
Disable Application |
Check box to deny access for all users; otherwise, the application will be available to all users who are configured in this server. |
|
Allow Client Extra CMD Options |
Check box to enable extra command line options. If this is not selected, extra options sent by a client will be ignored. Extra options received by the server are in addition to the application's own. Example: ServSideCMD "LeadProgram" ServXtraCMDoptions$ [-ARG ...] |
|
Allow Client Arguments |
Check box to enable clients to send additional command line arguments. Otherwise, such arguments sent by a client will be ignored. Extra arguments sent by a client are used in addition to the application's predefined arguments. Example: ServSideCMD "LeadProgram" -ARG App_Args$ AddClient_Args$ |
|
Allow Client to Set FID |
Check box to set FID(0) for the server-side process to match the value used/requested by the client system. Otherwise, the server-side process lets PxPlus select whatever FID(0) value it chooses. |
|
Allow Client to Set Start-In Directory |
Check box to enable the client to request a different Start-In directory for the server-side process. Otherwise, any such request by a client is ignored. |
|
Clients |
These fields can be used to control the type (WindX), as well as the minimum/maximum version numbers of the client software accessing this application. |
|
Client Type |
Client software permitted to access this application. Available selections are Any Client Type, WindX Clients Only, JavX Clients Only. |
|
WindX Ver |
Minimum version of WindX that may run this application. See Version Codes below. |
|
Max WindX Ver |
Maximum version of WindX that may run this application. See Version Codes below. |
|
JavX Ver |
Minimum version of JavX that may run this application. See Version Codes below. |
|
Max JavX Ver |
Maximum version of JavX that may run this application. See Version Codes below. |
|
OS Level |
These fields set properties needed for running applications under UNIX/Linux. |
|
Default Umask |
Umask setting for running this application. Note: |
|
Detach Spawns via Nohup |
Check box to determine whether any spawns from within this application session will use Nohup. The use of Nohup determines if a process is to remain attached (or not) to the process that spawned it and, if it is attached, then the child process will terminate when the session the parent is running has terminated. |
|
Additional Environment Vars |
Operating system environment variables for the process that is to run this application. |
Version codes are 9 characters in length, split into 2 parts. The first part is the 7-digit software revision; i.e. TCB(29). The second part is the 2-digit thin-client version number; i.e. TCB(88). When the Application Server evaluates the minimum/maximum version numbers, it evaluates the two parts separately. If the 7-digit software revision number is 0, then no check will be made. If the 2-digit internal client level is 0, then no check will be made.
You can set just the software revision, just the internal client level, or both.
Example:
|
|
0.00.0000/00 |
No level checking is performed. |
|
|
5.01.0000/00 |
Only a software level of "5.01.0000" is checked. |
|
|
0.00.0000/08 |
Only an internal client level of "08" is checked. |
|
|
5.01.0123/09 |
Both the software revision and the internal client level are checked. |
The Users panel lists all of the valid or configured users that may log into this server.
|
Type |
Indicates whether a user name is L (configured locally within this server) or G (configured within the <Global Config>). |
|
Remote User Name |
Case insensitive name that the user logs in as. This is the login ID that users must supply to their *CLIENT software. |
|
Deny |
Check box (On/Off) method for denying access to the listed user. |
|
Server User Name |
User ID associated with this user when running processes on the server. The Users Properties panel allows you to associate the user ID of the remote users with a user ID the server can use. |
|
Sessions |
Indicates the number of sessions a listed user is currently running. The number of c (client) and s (spawned) sessions is given. |
|
Last Logon |
Date that the user last logged on to any of the configured servers. |
|
Include Global Users |
Check box to determine whether the current server should use the globally configured user listing (from the <Global Config>) in addition to any locally configured users. |
|
Details |
Button used to view or modify properties of a listed user name. Highlight a user entry and click this button to invoke the Users Properties panel to allow an administrator to configure a user's abilities to access the server. |
|
New |
Button used to create a new remote user name. Click this button to invoke the Users Properties panel to allow an administrator to configure a user's abilities to access the server. To define a user that has access to all configured servers, switch the Server field to <Global Config>. |
|
Delete |
Button used to delete a selected user entry. |
The Users Properties panel is invoked by selecting the Details or New button. It allows an administrator to configure a user's abilities to access the server.
|
Remote User |
These fields define access for a remote user name. |
|
Remote User Name |
Case insensitive login name for the remote user. This is the name the user would enter in any Login dialogue on the remote workstation running *CLIENT (maximum 60 characters). Internally, this name is the one that appears within a login request to the server. |
|
Full Name |
Descriptive name for the remote user provided for reference. |
|
Password |
Password that the user must enter while logging into the server. |
|
User Can Change Password |
Check box to enable users to change their password from the *CLIENT program. |
|
Password Change at Next Logon |
Check box to force the user to change a password the next time he/she logs into the Application Server. Internally, when set, the server refuses any command from a user other than a "PASSWORD" change request after it receives a "LOGIN" request from a client workstation. Once a successful password change request has been completed, this setting is automatically turned off by the server. |
|
Server User |
These fields allow you to define the name, password and Windows domain that the server uses when launching processes on the server for a remote user. These settings are only in effect either when running under a UNIX/Linux environment or when using CmdAsUser in a Windows environment. Note: |
|
Server User Name Same as Remote User Name |
Check box to enable the Remote User Name and Password, along with the default user's (or current Windows domain) to be used to start the server process. Otherwise, the following values (Server User Name, Password, Domain) must be set. |
|
Server User Name |
User ID on the server for running these processes. |
|
Password |
Windows password required for the user account given to run processes on this server as the Server User Name. |
|
Domain |
Windows domain name required for the user account given to run these processes on this server. The domain defaults to the domain name of the currently logged in user if available. |
|
Miscellaneous |
These fields control user access. |
|
Deny Access |
Check box to deny access. When selected, the user will receive an "Invalid Login" message when attempting to log in. |
|
Enable Console Mode Access |
Check box to allow the user to access a PxPlus console prompt either by sending a null or by using CONSOLE as an application name. This setting also controls access to PxPlus console mode for all spawned sessions of this user. |
|
Run Any Program |
This field determines what the user may run: any program or any configured application. Run Any Program means that the user will be able to access any application defined on the Apps panel, and if the application is not found, then the application name given will be used as the lead program name of an application to run. Example: If a user is set to Run Any Program, and if the requested application name Test is not configured in the Apps panel, then the server will run Test if it exists. Run Any Configured App means that the listed user will have access only to those application names listed on the Apps panel. |
The Service panel sets up the Application Server daemon to be run as a Windows service.
|
Service Properties |
|
|
Name |
A unique service name, generated automatically. |
|
Display Name |
Users will see these displayed in the MS Windows Services listing. |
|
Start Type |
Drop box options to set up the Windows service for Automatic or Manual start or to have it Disabled. |
|
Domain |
If the service is to run as a user other than "local system", then these properties may be set. |
|
Interact With Desktop |
Check box to enable access to the desktop. This is only valid when running as the "local system" account (not as another user). |
|
Install |
Buttons used to add or remove the service from Windows. |
To start or stop the service, use the Start and Stop buttons on the Server panel. If the service is not installed, then selecting Start will start it on the Windows desktop.
Running each server daemon as a separate service can cause difficulties with PxPlus user count licensing. If you have more than one daemon running and they are set to interact with the desktop, then they can share the total user license count. However, if they do not interact with the desktop, then they will not be able to share the user count.
Example:
There are two server daemons (A and B) and 5 workstations. If all 5 connect to daemon A, you will use 6 user slots - one for the daemon and one for each of the WindX workstations 1 through 5. If all 5 of those workstations also connect to server B and each runs one session, then you will use another 6 user slots - one for the B server daemon and one for each of the 5 workstations. This means you will have used 12 user slots in total. However, if you set both daemons A and B to interact with the desktop and each of the 5 workstations connects one session to both server A and server B, then you will only use a total of 6 user slots, rather than a total of 12.
The Logging panel allows administrators to maintain aspects of the Application Server's logging functions. All log files are saved as plain ASCII text files in a subdirectory of the *appserv directory, which has the same name as the server.
Use the check box in the Enable column to select logging of the different listed actions.
|
Log All Server Errors |
Log of internal errors involving the Application Server daemon. Errors encountered in this log should be reported immediately. |
|
Log All Connections |
Simple log of all machines that connect or disconnect from the server, including clients and server-side connections. |
|
Log Any Invalid Requests |
Log of all the requests that are invalid, unknown or not supported, as well as of all the responses from the server. An example of an invalid request would be when someone opens the Application Server daemon's socket and attempts an HTTP or FTP request. |
|
Log All Client Requests |
Log of acceptable requests made by client workstations and the response they received from the server. |
|
Log All Administrator Requests |
Log of administrative commands received by the server daemon and its response to that request. Currently, only the Application Server's Configuration tool makes administrative requests. |
|
Log All Internal Housekeeping Requests |
Log of internal requests and their responses. These are requests that the servers made when their processes were invoked, as well as server and client requests when their processes were spawned. |
|
Log All Applications Launched |
Log of all the sessions that clients requested and the command lines that the server used to launch those sessions. |
|
View |
Button used to invoke the Log Viewer for viewing the currently selected log. |
|
Clear |
Buttons used to clear the selected log or all logs. |
|
Rotate |
Button used to rename all logs with a leading date. Example: 20050622.140253.error.log YYYYMMDD.HHMMSS.* |
The Log Viewer panel is invoked by clicking the View button for a selected log. All log files are in ASCII text and follow a standard format where applicable. The | pipe symbol is used as the separator between items of information. The * (asterisk) is used in place of a PxPlus $8A$ field separator. All passwords in valid requests are hidden using 10 periods (. . . . . . . . . .).
Logs typically show the following information:
Application Server configuration and run-time files are located under Lib/_appserv within the system's PxPlus directory. Some of these data files should be preserved and copied to maintain configuration settings when you plan to move, upgrade or reinstall your server.
Dynamic Information
The following files are updated by the system at run time:
|
|
Sessions.pvk |
Existing sessions since daemon started, relevant records cleared each time the daemon is started or stopped. This file also stores the location of the PxPlus executable. |
|
|
Pid.pvk |
Lock file for tracking running daemons, configuration screens, records added by daemons and configuration automatically. |
|
|
Locate.pvk |
Tracks screen location and columns to display for the Sessions list for the Application Server Configuration utility, records added automatically. |
Static Information
The following data files are used specifically for the configuration of Application Server daemons. These are based on your changes to the Application Server Configuration utility and should be preserved/copied if you decide to change the location of your existing server:
|
|
Server.pvk |
1 record per server daemon, tracking your selected information on a per-server basis. |
|
|
Apps.pvk |
1 record per application per server daemon, tracking your selected information for configuration applications within an Application Server daemon. |
|
|
Users.pvk |
1 record per user per server daemon, tracking your selected information for users within an Application Server daemon. |
