File Maintenance Generator

Hyperlink Prompt

Step 6: Field Layout

Note:
The Hyperlink Prompt option is applicable when the field is not the last Key segment.

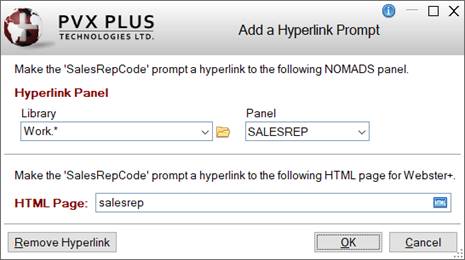

The Add a Hyperlink Prompt window is used to add a hyperlink to a data dictionary field prompt only if the field is not the last Key segment. For example, a hyperlink can be added to the "SalesRepCode" prompt to launch Sales Representatives Maintenance. When a hyperlink prompt is added, the cell contents are underlined.

(The ability to add/edit a Hyperlink Prompt was added in PxPlus 2021.)

To invoke this window, use one of the following methods:

     • Click the Add Object button (above the Layout Grid) and select the Hyperlink Prompt option. OR

     • Right click on a cell in the Layout Grid, select Add Object from the popup menu and then select the Add or Edit a Hyperlink Prompt option.



This window consists of the following:

Hyperlink Panel

Specify the NOMADS panel to display when the hyperlink prompt is clicked at run time.

Library

Library that contains the NOMADS panel. Click the drop-down arrow for a list (up to nine) of previous selections. Use the Browse button to locate the library or enter the pathname.

Panel

NOMADS panel name. Click the drop-down arrow for a list of panels in the selected library. If left blank, the prompt will not be a hyperlink.

HTML Page

(Available when HTML Page check box is selected for Form Type)

Specify the HTML page to display when the hyperlink prompt is clicked at run time. Use the HTML query button to locate the HTML page or enter the pathname. If left blank, the prompt will not be a hyperlink.

Remove Hyperlink

Clears the Panel and HTML Page selections and removes the hyperlink from the prompt.
