PxPlus Command Line Editing |
|
The simplest way to create/change a program involves entering numbered statements directly at the prompt -> in Command mode. As each numbered statement is entered, it is evaluated for syntax, compiled and then placed in memory to represent a line in the current program. While rudimentary, the Command Line Editor has all the tools necessary for creating, editing and saving any size of program.
During this process, the prompt changes from -> to -: to indicate that the current program is being edited and has not been saved. The first numbered statement adds the first line to a new current program, the second, adds another line, and so on. Regardless of the sequence entered, the lines in the current program are rearranged internally based on their line numbers and are always executed in ascending order. This is true whether you create a new program in memory or LOAD an existing program from disk.
See PxPlus Environment.
At any point during the editing process, you can review the entered statements in their proper numeric sequence by issuing a LIST of the current program. This gives you a listing of the entire contents of a program.
Because a program is maintained internally in compiled (object) format, the LIST version of some statements may not always match the original entries, but the actual logic will appear as intended.
Example:
In the following example, subtle changes are made to line 40 after it is listed:
40 z=1,y=6; goto 10
list
0010 LET A=4,B=3
0020 LET C=A+B
0030 PRINT C
0040 LET Z=1,Y=6; GOTO 0010
Once listed, the keyword LET is inserted, the lowercase variable names are converted to uppercase, and the line number is expanded to four digits.

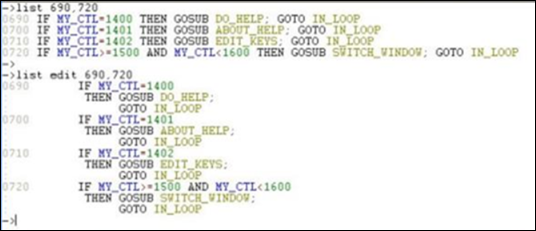

The EDIT keyword can be used with the LIST directive to format the display by indenting loops and compound statements.
Example:
The behaviour of the LIST directive can be affected by various system parameters. When turned on, 'LC' lists variables in lowercase, 'MC' lists variables using mixed case (dependent on how they were initially entered), and 'LE' causes LIST to display the same as LIST EDIT.
If an error occurs during compilation, the flawed statement will be indicated by a ? (question mark) between the line number and the text.
Example:
10 A="Hello"
#26 -- Variable type invalid
LIST
0010?A="Hello"
When a numbered statement is entered with the same line number as a line in the current program, the existing line is automatically overwritten by the new statement. If you want to modify rather than overwrite the statement, use the EDIT directive (or shortcut) to recall the specific line number.
Example:
list
0010 PRECISION 2
0020 ROUND OFF
0030 LET A=3*(2/3)
0040 PRINT A
edit 30
0030 LET A=3*(2/3)
Once displayed, the contents of the line (including the line number) can be changed and re-entered. See EDIT directive.
Program code can also be copied, pasted and edited using a variety of other techniques that include command line recall (up/down cursor keys), as well as the Edit function, which is accessed via the PxPlus icon drop-down menu (top left corner) in the PxPlus (Windows) console.
To append text to an existing statement, enter the line number, followed by a colon.
Example:
If an existing statement is
0030 PRINT "End-of-pass"
then
30:;NEXT I
results in
0030 PRINT "End-of-pass"; NEXT I
To remove lines from a program, simply enter the desired line number, followed by no directive (e.g. entering a 20 deletes all of line 0020). Optionally, a range of lines can be deleted using the DELETE directive.
Example:
DELETE 260,890 ! Deletes statements from line 0260 to line 0890
DELETE 260, ! Deletes statements from line 0260 to program end
DELETE ,890 ! Deletes from program start to line number 0890
In Command mode, statements must have line numbers to be accepted in the current program; otherwise, they are executed as commands. If you prefer to add numbered statements without having to type the actual numbers, use the AUTO directive to generate the line numbers automatically.
Example:
AUTO 100,10
0100 ! PxPlus generates line 0100 for you. Add the statement.
0110 ! PxPlus adds 10, generates line 0110.
0120
AUTO mode remains active until you enter a null line. You can also backspace over to change the generated line number.
Use the RENUMBER directive to change line numbers in an existing program without affecting the logic. All references to the original line numbers will be adjusted as required; i.e. GOTO and GOSUB statements will point to the new line numbers. The starting line number, increment and the range of lines affected can be defined using this directive.
Command mode includes a built-in utility that allows the programmer to search the current program for a specific character string, display it and optionally replace it. For a list of the symbols used to implement this functionality, see Punctuation/Syntax.
Subject character strings are delimited by square brackets:
|
|
[PRINT] |
Displays the next line that contains the word PRINT. |
|
|
10,100[PRINT] |
Displays all lines between 10 and 100 containing PRINT. |
|
|
*[PRINT] |
Displays all lines containing PRINT. |
|
|
*[PRT$]=[PRINT$] |
Changes all instances of PRT$ to PRINT$. The replacement can also apply to a range of lines (e.g. 10,100[PRT$]=[PRINT$] ) or be limited to the next line only ( [PRT$]=[PRINT$] ). |
The SAVE directive may be used to write a copy of the current program to disk. Once written or "saved" on disk, the program may be recalled for subsequent execution or modification. The LOAD or RUN command may be used to recall a saved program. The format of the SAVE command is as follows:
SAVE "Progname"
If the file specified by "Progname" does not exist, a program file is created, and the program is written to it. If desired, a string variable or expression may be substituted for the literal "Progname".
The type of file to which the program is being saved determines the format that the saved program will take. If the file is a PxPlus 'Program' file (as indicated in the file header), then the program is saved in internal format (object code), and the final pass of the compiler is performed. For any other type of file, the program is saved in 'LIST' format; that is, the program is saved as it appears in response to a LIST command. Either format of the file can be used to recall and run programs.
The format of the LOAD and RUN commands are as follows:
LOAD "Progname"
RUN "Progname"
The LOAD command clears the current program and replaces it with the program contained in the file specified. The RUN command loads a program then starts executing it. A RUN command with no file specified executes the current program.
