TinyMCEฎ HTML Editor

Using the TinyMCEฎ HTML Editor

To add an HTML Editor to your application panel, follow these steps to create a COM Control using the NOMADS Panel Designer:

1.

Select COM Control from the Controls tool bar. Click and drag the mouse to outline the location of the TinyMCEฎ Editor control on the panel.

2.

When the mouse is released, the COM Control Properties window displays. Enter an Object Name for the control (e.g. ED).

3.

Click the COM Control query button and select PVX Plus Controls from the pop-up menu.

4.

From the list of PVX Plus Controls that displays, select Tinymceฎ Editor Control.

5.

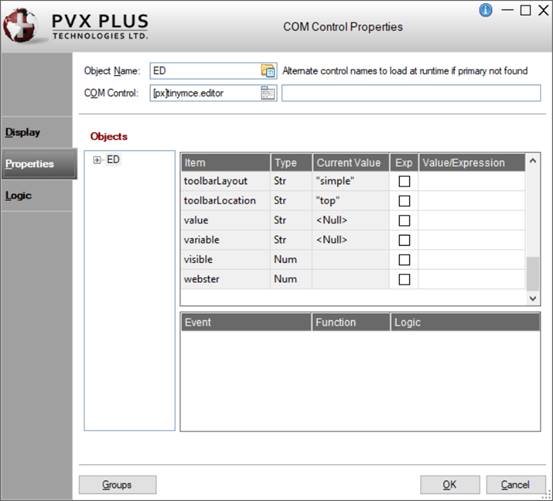

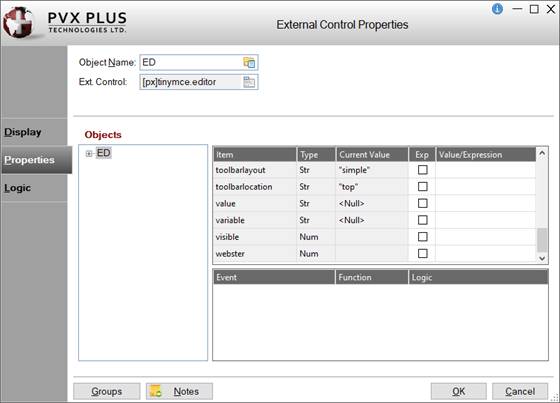

In the COM Control Properties window, click the Properties tab to set the properties. See the Editor Properties and Editor Methods that are specific to the TinyMCEฎ HTML Editor.

Six pre-defined layouts are included: Modern, Narrow, Simple (default), Advanced, Extended and Fullpage. You can also create your own Custom Layout.

(The Modern and Narrow layouts are available as of PxPlus 2019.)



These properties, as well as other read-only properties utilized by NOMADS/iNomads, are used when creating the control and cannot be changed dynamically. The only dynamic property is the value$ property, which can be used to load and retrieve the contents of the Editor.

Example:

In this example, a Load button and a Save button will be added to the panel. The Load button invokes the GET_FILE_BOX dialog to specify an HTML file to load into the Editor. The OnChange logic looks like this:

get_file_box read p$,lwd,""
if p$<>"" then open(hfn,isz=-1)p$;
read record (lfo,siz=1000000) r$;
ed.ctl'value$=r$;
close(lfo)

When a file name is selected, it is opened and the contents are read into a string variable, which is then assigned to the value$ property of the control. This loads the contents of the file into the Editor.

The Save button retrieves the contents of the Editor control via the Editor's value$ property and writes them to a local file, then displays them in the default browser. The OnChange logic looks like this:

x$=ed.ctl'value$
serial "[lcl]htmltest.htm",err=*proceed
open purge(hfn)"[lcl]htmltest.htm"
print(lfo)x$
close(lfo)
system_help "htmltest.htm"

Editor Properties

The following properties (on the Properties tab in the COM Control Properties window) are specific to the TinyMCEฎ HTML Editor:

Property

Description

allowScripts

Use this property to allow editing of HTML with JavaScript.

If set to 1 (On), JavaScript elements and properties are not stripped, thus allowing HTML with scripts to be edited.

When set to 0 (Off), JavaScript elements and properties are stripped from edited HTML (default is 0).

(The allowScripts property was added in PxPlus 2021 Update 2.)

toolbarAlign$

Alignment of the edit controls within the tool bar area. Options are Left (default), Center, Right.

Note:
As of PxPlus 2019, this property is ignored. (TinyMCEฎ HTML Editor no longer supports this functionality.)

toolbarLayout$

Selection of edit controls. The following pre-defined editing layouts are included: Modern, Narrow, Simple (default), Advanced, Extended and Fullpage. You can also create your own Custom Layout.

To change the layout, enter the desired layout in the Value/Expression column (e.g. Modern).

(The Modern and Narrow layouts are available as of PxPlus 2019.)

toolbarLocation$

Location of the tool bar containing the edit controls. Options are Top (default), Bottom, External. The External option displays the tool bar above the control when the control has focus and is available in iNomads only.

Note:
As of PxPlus 2019, this property is ignored. (TinyMCEฎ HTML Editor no longer supports this functionality.)

value$

Use this property to load and retrieve the contents of the Editor control. The control may be loaded with HTML code or plain text.

Note:
The retrieved contents contain line feeds.

webster

Use this property to enable the Webster+ menu items and tool bar button (default is 0). See Webster+.

Setting this property to 1 allows the Modern Layout to be used, which already includes the Webster+ items. Alternatively, you can create/modify a layout with the keywords webster and websterpreview in the menu and tool bar sections of the layout.

(The webster property was added in PxPlus 2021.)

Editor Methods

The following method is supported:

Method

Description

Focus( )

Sets focus to the TinyMCEฎ Editor control.

(The Focus( ) method was added in PxPlus 2021.)

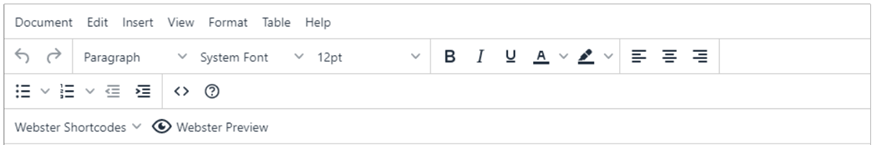

Modern Layout

The Modern layout uses menus and tool bar buttons. All Editor features can be found in the menu. The most common of those features are available as tool bar buttons.

This layout also uses the Fullpage option. With this option, the output from the Editor includes the <html> and <body> elements to produce a full page whereas the default excludes these portions. This option also adds a Metadata and document properties item on the Document menu, which is used to edit the different settings for the document, such as title, metadata, etc.

The menu, tool bar and right click menu options that are available with this layout are listed below.

Menu Options

The menu consists of the following options (in the order of appearance):

Document
     Print
     Metadata and document properties
     Word count

Edit
     Undo
     Redo
     Cut
     Copy
     Paste
     Paste as text
     Select all
     Find and replace

Insert
     Link
     Remove link
     Media
     Special character
     Date/time
          • hh:mm:ss
          • yyyy-mm-dd
          • hh:mm:ss AM/PM
          • mm/dd/yyyy
     Emoticons
     Horizontal line
     Nonbreaking space
     Page break
     Anchor
     Webster Shortcodes (Available if the webster property is set to 1 - see Webster+ Short Codes)

View
     Visual aids
     Show invisible characters
     Show blocks
     Preview
     Webster Preview (Available if the webster property is set to 1)

Format
     Bold
     Italic
     Underline
     Strikethrough
     Superscript
     Subscript
     Bullet list
     Numbered list
     Decrease indent
     Increase indent
     Formats
          • Headings
               • Heading 1
               • Heading 2
               • Heading 3
               • Heading 4
               • Heading 5
               • Heading 6
          • Inline
               • Bold
               • Italic
               • Underline
               • Strikethrough
               • Superscript
               • Subscript
               • Code
          • Blocks
               • Paragraph
               • Blockquote
               • Div
               • Pre
          • Align
               • Left
               • Center
               • Right
               • Justify
     Clear formatting

Table
     Table
          • Displays a 2D grid for selecting the number of rows and columns desired for the new table
     Table properties
     Delete table
     Cell
          • Cell properties
          • Merge cells
          • Split cell
     Row
          • Insert row before
          • Insert row after
          • Delete row
          • Row properties
          • Cut row
          • Copy row
          • Paste row before
          • Paste row after
     Column
          • Insert column before
          • Insert column after
          • Delete column
          • Cut column
          • Copy column
          • Paste column before
          • Paste column after

Help
     Help

Tool Bar Options

The tool bar consists of the following (in the order of appearance):

     Line 1:

     Undo
     Redo
     Paragraph
          • Headings
               • Heading 1
               • Heading 2
               • Heading 3
               • Heading 4
               • Heading 5
               • Heading 6
          • Inline
               • Bold
               • Italic
               • Underline
               • Strikethrough
               • Superscript
               • Subscript
               • Code
          • Blocks
               • Paragraph
               • Blockquote
               • Div
               • Pre
          • Align
               • Left
               • Center
               • Right
               • Justify
     Font types
     Font sizes
     Bold
     Italic
     Underline
     Text color
     Background color
     Align left
     Align center
     Align right

     Line 2:

     Bullet list
     Numbered list
     Decrease indent
     Increase indent
     Source code
     TinyMCEฎ Help

     Line 3:

     Webster Shortcodes (Available if the webster property is set to 1 - see Webster+ Short Codes)
     Webster Preview (Available if the webster property is set to 1)

Right Click Menu Options

The right click menu is context sensitive and provides options that are specific to the selected object. For example, right clicking on a table displays table-related options, or right clicking on an image displays image-related options.

(The Modern layout is available with PxPlus 2019.)

Narrow Layout

The Narrow layout uses menus and tool bar buttons. A simplified set of Editor features can be found in the menu, and the most common of those features are available as tool bar buttons.

The menu, tool bar and right click menu options that are available with this layout are listed below.

Menu Options

The menu consists of the following (in the order of appearance):

File
     New document
     Print
     Word count

Edit
     Undo
     Redo
     Cut
     Copy
     Paste
     Paste as text
     Select all
     Find and replace

Insert
     Link
     Remove link
     Media
     Special character
     Date/time
          • hh:mm:ss
          • yyyy-mm-dd
          • hh:mm:ss AM/PM
          • mm/dd/yyyy
     Emoticons
     Horizontal line
     Nonbreaking space
     Page break
     Anchor

View
     Visual aids
     Show invisible characters
     Show blocks
     Preview

Format
     Bold
     Italic
     Underline
     Strikethrough
     Superscript
     Subscript
     Bullet list
     Numbered list
     Decrease indent
     Increase indent
     Formats
          • Headings
               • Heading 1
               • Heading 2
               • Heading 3
               • Heading 4
               • Heading 5
               • Heading 6
          • Inline
               • Bold
               • Italic
               • Underline
               • Strikethrough
               • Superscript
               • Subscript
               • Code
          • Blocks
               • Paragraph
               • Blockquote
               • Div
               • Pre
          • Align
               • Left
               • Center
               • Right
               • Justify
     Clear formatting

Table
     Table
          • Displays a 2D grid for selecting the number of rows and columns desired for the new table
     Table properties
     Delete table
     Cell
          • Cell properties
          • Merge cells
          • Split cell
     Row
          • Insert row before
          • Insert row after
          • Delete row
          • Row properties
          • Cut row
          • Copy row
          • Paste row before
          • Paste row after
     Column
          • Insert column before
          • Insert column after
          • Delete column
          • Cut column
          • Copy column
          • Paste column before
          • Paste column after

Tool Bar Options

The tool bar consists of the following (in the order of appearance):

     New document
     Bold
     Italic
     Underline
     Align left
     Align center
     Align right
     Font types
     Font sizes
     Source code

Right Click Menu Options

The right click menu is context sensitive and provides options that are specific to the selected object. For example, right clicking on a table displays table-related options, or right clicking on an image displays image-related options.

(The Narrow layout is available with PxPlus 2019.)

Simple Layout

The Simple layout consists of font-related and alignment options in a simple tool bar.

The tool bar and right click menu options that are available with this layout are listed below.

Tool Bar Options

The tool bar consists of the following (in the order of appearance):

     Bold
     Italic
     Underline
     Strikethrough
     Align left
     Align center
     Align right
     Font types
     Font sizes
     Source code

Right Click Menu Options

The Simple layout does not define a custom right click menu but rather a right click menu for the embedded browser.

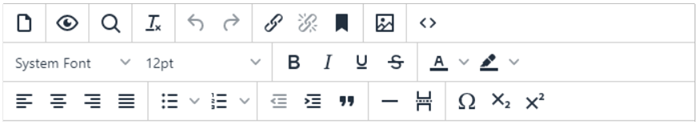

Advanced Layout

The Advanced layout provides additional formatting features, such as Undo, Links, Images, Colors, etc.

The tool bar and right click menu options that are available with this layout are listed below.

Tool Bar Options

The tool bar consists of the following (in the order of appearance):

     Line 1:

     New document
     Preview
     Find and replace
     Clear formatting
     Undo
     Redo
     Insert/edit link
     Remove link
     Anchor
     Insert/edit image
     Source code

     Line 2:

     Font types
     Font sizes
     Bold
     Italic
     Underline
     Strikethrough
     Text color
     Background color

     Line 3:

     Align left
     Align center
     Align right
     Justify
     Bullet list
     Numbered list
     Decrease indent
     Increase indent
     Blockquote
     Horizontal line
     Page break
     Special character
     Subscript
     Superscript

Right Click Menu Options

The right click menu is context sensitive and provides options that are specific to the selected object. For example, right clicking on a link displays link-related options, or right clicking on an image displays image-related options.

Extended Layout

The Extended layout provides options for inserting date/time and adding a table.

The tool bar and right click menu options that are available with this layout are listed below.

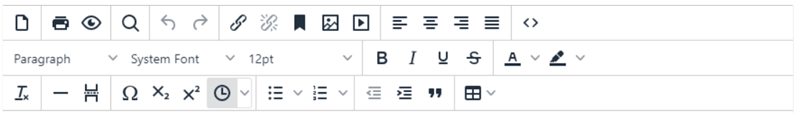

Tool Bar Options

The tool bar consists of the following (in the order of appearance):

     Line 1:

     New document
     Print
     Preview
     Find and replace
     Undo
     Redo
     Insert/edit link
     Remove link
     Anchor
     Insert/edit image
     Insert/edit media
     Align left
     Align center
     Align right
     Justify
     Source code

     Line 2:

     Paragraph
          • Paragraph
          • Heading 1
          • Heading 2
          • Heading 3
          • Heading 4
          • Heading 5
          • Heading 6
          • Preformatted
     Font types
     Font sizes
     Bold
     Italic
     Underline
     Strikethrough
     Text color
     Background color

     Line 3:

     Clear formatting
     Horizontal line
     Page break
     Special character
     Subscript
     Superscript
     Insert date/time
     Bullet list
     Numbered list
     Decrease indent
     Increase indent
     Blockquote
     Table

Right Click Menu Options

The right click menu is context sensitive and provides options that are specific to the selected object. For example, right clicking on a link displays link-related options, or right clicking on an image displays image-related options.

Fullpage Layout

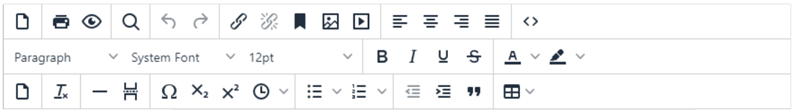

The Fullpage layout is the same as the Extended layout and uses the Fullpage option. With this option, the output from the Editor includes the <html> and <body> elements to produce a full page whereas the default excludes these portions. This option also adds a Metadata and document properties tool bar button, which is used to edit the different settings for the document, such as title, metadata, etc.

Spell Checking

All of the layouts support automatic spell checking where incorrect words are red underlined. To see a list of suggested words and possibly replace the incorrect word with the correct one, hold down the Ctrl key and right click on the incorrect word.

See Also

Creating a Tool Bar Layout
Webster+



TinyMCEฎ is a registered trademark of Tiny Technologies Inc.
