Accessing Library Objects from IDE

Accessing File Maintenance Generator from IDE

The File Maintenance Generator task on the IDE Main Launcher is used to invoke the File Maintenance Generator for creating or editing a file maintenance panel.

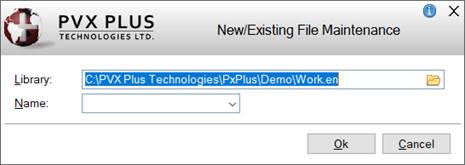

To select this task, expand the Graphical Application Builder (NOMADS) category on the Menu list. This task opens the New/Existing File Maintenance window, which is used to specify a library and the name of a new or existing file maintenance panel.

(The File Maintenance Generator task was added in PxPlus 2023 Update 1.)

This window consists of the following:

Library

Defaults to the Default Library defined for the current project. If a default library was not defined, this will be blank. Enter the name of the library file or click the Query button.

Name

Enter the name of the file maintenance panel or click the drop-down arrow to select from a list of the existing file maintenance panels in the library. If the file maintenance panel name does not exist, you will be able to create the new file maintenance panel when you click Ok.

Note:
When entering a new file maintenance panel object name, valid characters are: letters (A-Z, a-z); numbers (0-9); ~ (tilde); @ (at symbol); . (period); $ (dollar sign); _ (underscore); - (dash); + (plus sign). If an invalid character is used, a message will display.

Ok

Launches File Maintenance Generator.

Cancel

Closes the New/Existing File Maintenance window with no further action taken.
