Utility Routines

*TOOLS/SYSTEMANALYSIS

Analyze PxPlus Installation and Setup

Description

The System Analysis utility analyzes the PxPlus installation and setup. It runs the following tests and displays the results, reporting any issues found:

Test	Description
PxPlus Install Test	Create and delete a file in the install directory. Create and delete a file in the Lib directory and all Lib sub-directories. (A permissions check on all Lib sub-directories was added In PxPlus 2023.)
WindX Test	Display client and server PxPlus versions and the WindX program version. Ensure client PxPlus version equals the server PxPlus version. Validate %PXPLUS_HOST$ is set correctly and that spawning works.
PxPlus Environment Variables	Display all of the PxPlus environment variables.
Internet Test	Test that PxPlus can connect to the Internet at www.pvxplus.com.
SSL Test	Test that PxPlus can connect securely via SSL to www.pvxplus.com. Display OpenSSL version.
External DB Test	Test that ADO is supported. Test that ODB is supported. On UNIX, test that UNIX ODBC is setup. Test that DB2 is supported and the DB2 client is setup. Test that OCI is supported and the Oracle instant client is installed. Test that MySQL client library is installed.
PDF Test	Check that LibHaru is supported and enabled. Open a PDF file.

(The System Analysis utility was added in PxPlus 2022.)

This utility can be invoked either in graphical or Text-based mode. To invoke this utility in graphical mode, use one of the following methods:

Location	Method
From the PxPlus IDE Main Launcher	Expand the Installation and Setup category and select System Analysis.
From the PxPlus Command window	Enter: SA

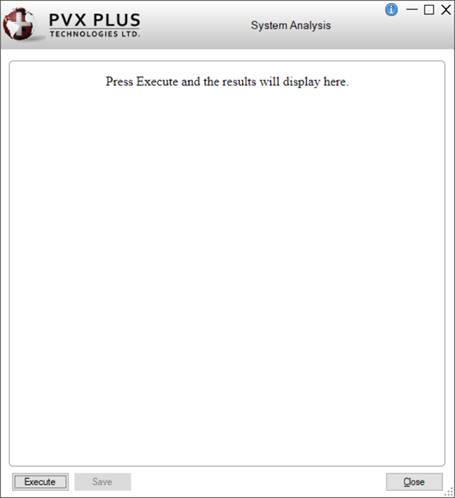

The System Analysis window displays. Clicking the Execute button runs the tests and displays the results:

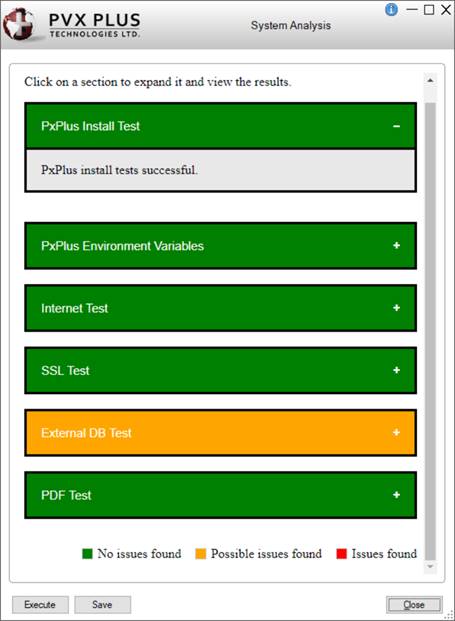

Results Displayed (first section has been expanded)

This window consists of the following:

Execute

Runs the system analysis and, when completed, displays the results in sections. Click on a section to expand it and view the results.

Each section is labelled with the name of the test, and the color indicates the status of the tests completed for the section:

Green	No issues found. All tests were successful.
Orange	Possible issues found, which may or may not need to be addressed. Suggested fixes are provided, if possible.
Red	Issues found, which must be resolved. Suggested fixes are provided, if possible.

Save

Saves the results as HTML.

Close

Exits the System Analysis utility.

To invoke this utility in text-based mode, use the following format:

CALL "*tools/systemanalysis",results$,htmlOutput

Where:

results$	Output string where the test results are returned.
htmlOutput	If set, the output will be HTML. If not set or set to 0, the output is plain text.
