Views System

View Maintenance

View Maintenance is used to Define a View, as well as edit, reorganize and print existing view definitions.

To invoke this window, use one of the following methods:

Location	Method
From the PxPlus IDE Main Launcher	Expand the Views category and select View Maintenance.
From the NOMADS Session Manager	From the menu bar, select Utilities > Views Definition.
PxPlus statement	CALL "*views/views;View_Maintenance"
PxPlus statement	PROCESS "View_Main","*views/views.en"
From the PxPlus Command line	Enter: VU

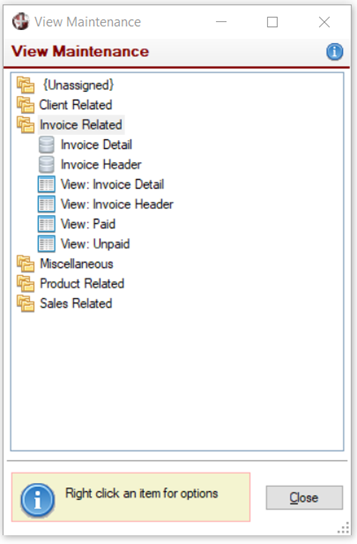

View Maintenance presents a list of all available data sources and views in their logical groups. Selecting a data group, data source or view allows access to different maintenance functionality:

Data Groups

Double clicking on a data group expands (or collapses) a tree view of current data sources and views in that group.

Right clicking on a data group displays a popup menu with the following options:

Add a New Group	Invokes the Define a Group window.
Update Group Properties	Brings up the group definition for editing.
Copy to another Group	Prompts you for the name of a group to copy to.
Delete Group	Displays a message prior to deletion.
Print	Presents a choice of print options: Print Groups and Print Items in this Group.

Data Sources

Double clicking on a data source displays a message for creating a new view from the selected data source. Responding Yes invokes the Define a View window.

Right clicking on a data source displays a popup menu with the following options:

Create a View from this Data Source	Invokes the Define a View window.
Print Data Source Definition	Prints the definition.

Views

Double clicking on a view invokes the Define a View window for editing the selected view.

Right clicking on a view displays a popup menu with the following options:

Add a New View	First prompts you to select a data source to use. After that, the Define a View window is launched.
Update View Properties	Brings up the view definition for editing.
Copy to another View	Prompts you for the name of a view to copy to. An Add to current Group check box option is provided, which is selected by default.
Delete View and all References	Displays a message prior to deletion.
Remove View from Group	Removes the selected view from the group and puts it in the {Unassigned} default group.
Print View Definition	Presents a choice of print options: Print Groups and Print Items in this Group.
